FUJIAN TV Lens f=35mm 1:1.7

Focal length: 35mm
full format, APS-C equiv. 53mm
Min focus distance: 0.30m
Aperture: F 1.7 - 16
Length (from flange): 42mm
Diameter: 43mm
Weight: 130gr. mount included

Some pictures:

jpg_a6000/35mm_fujian_IMG_0805.JPG

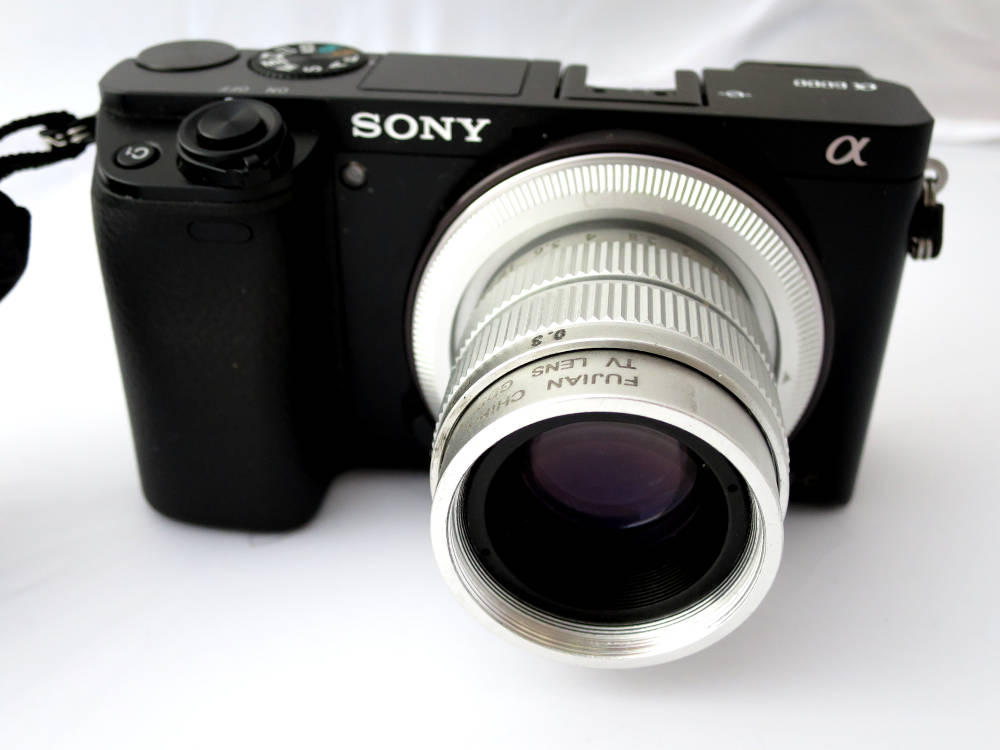

A6000 and the lens.

Sample pictures: You may click on the sample image (except closest focus) for full resolution. The full resolution image opens in a new window, so you can keep it open for comparison. Focus is on the satellite dish to the right of the big solar panel near the center of the photo.

jpg_a6000/w_35mm_fujian_f1_7_DSC00168.jpg
F 1.7, ISO 100.

jpg_a6000/w_35mm_fujian_f4_DSC00169.jpg
F 4.

jpg_a6000/w_28mm_olympus_f22_DSC00162.jpg
F 16.

jpg_a6000/w_35mm_fujian_cl_f8_DSC00171.jpg
Closest focus
is only 14cm from outermost edge of the lens, F 4. Focus on the program wheel of the camera.

This is a C-mount lens, a mount for movie and security cameras. You can buy the lens with an E-mount adapter. As C-mount focal flange distance is shorter than Sony E-mount, it comes with a slightly recessed adapter. There was even a close focus ring and a shade in the package. It's a basic lens. Aperture has no click stops and infinity isn't at the infinity mark, but it focusses to infinity nevertheless.

It's a bright lens and astonishingly sharp in the center already wide open, but very soft at the corners. At F 4 corner softness is only slightly visible.
At F 16 it hardly gets blurred at the edges due to diffraction, much better than other lenses. Diffraction is a problem of the APS-C sensor size, not the lens (see comparison page). It's small and cheap, so don't expect high quality, but you have a unique control of corner softness via the aperture. Quite some fun for portrait sessions. It has some close focus capabilities, even without the close focus ring.
