ZEISS-Planar T 1 : 1.7 F=50mmm

Focal length: 50mm
Mount: Contax/Yashica
Aperture: F 1.7 - F 16
Min focus distance: 0.55m
Length
(from flange): 36/41mm [+ 27mm for the adapter]
Diameter: 60mm
Weight: 195gr.

Some pictures:

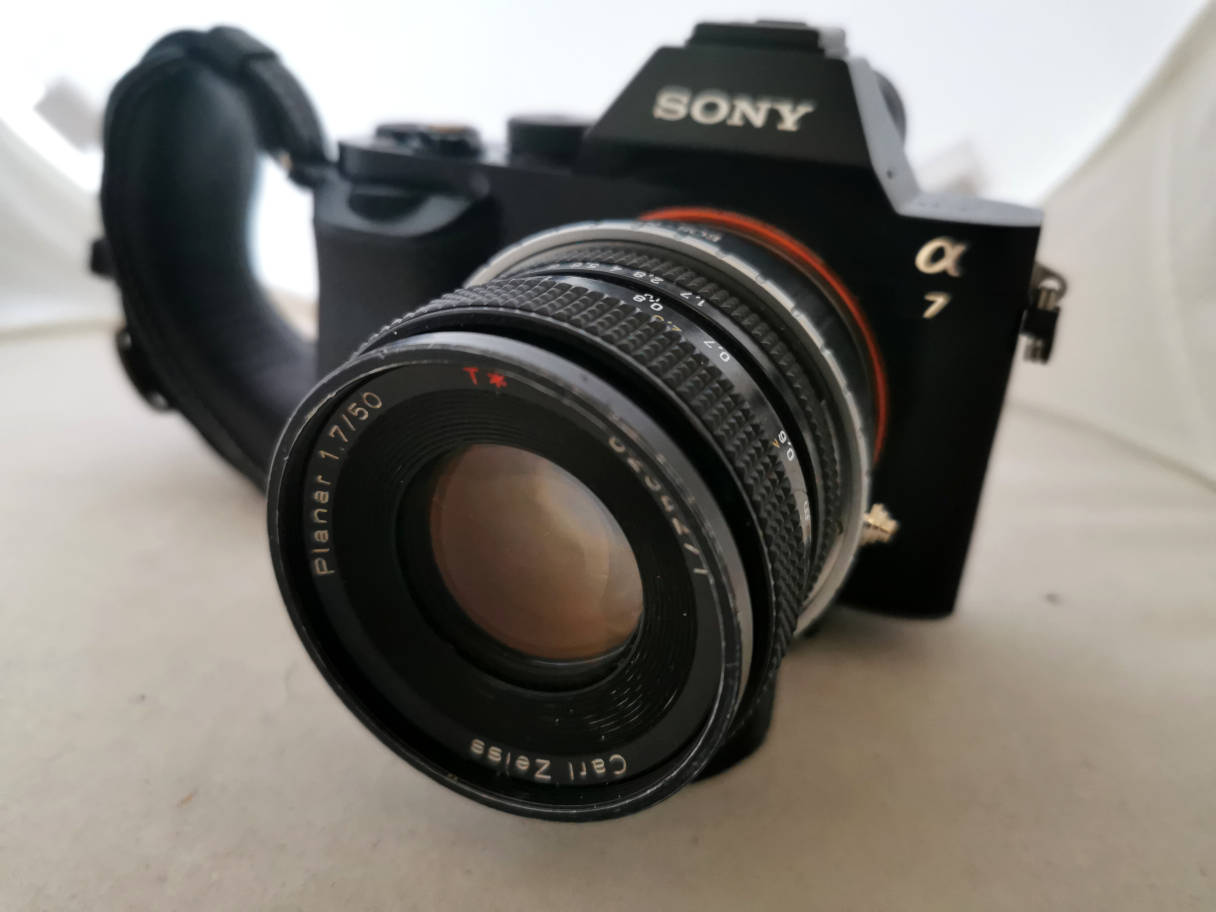

A7 and the lens.

The grip is a HorusBennu grip attached to a Manfrotto 200PL style quick release plate, a special plate made by HorusBennu for their grips. It allows you to use the camera, with the grip attached, on a Manfrotto RC2 Rapid Connect Adapter.

jpg_lens/50mm_zeiss_planar_t_IMG_20240618_164311.jpg

Sample pictures: ISO 200

You may click on the sample image (except closest focus) for full resolution. The full resolution image opens in a new window,
so you can keep it open for comparison. Focus is on the satellite dish to the right of the big solar panel near the center of the photo.

jpg_sample/w_50mm_zeiss_planar_t_f_1_7_DSC01840.JPG
F 1.7.

jpg_sample/w_50mm_zeiss_planar_t_f_4_DSC01841.JPG
F 4.

jpg_sample/w_50mm_zeiss_planar_t_f_8_DSC01842.JPG
F 8.

jpg_sample/w_50mm_zeiss_planar_t_f_16_DSC01843.JPG
F 16.

jpg_sample/w_50mm_zeiss_planar_t_close_f_8_DSC01844.JPG
Closest focus  is 55cm from outermost edge of the lens, F 8. Focus on the contacts of the battery.

The performance of this said to be lens is fine, it's one of the cheaper Zeiss lenses which can be found for decent prices although it's a 6-lens construction. Wide open it shows a bit of vignetting and softness. Stopped down it's sharper, at F 2 it remains softer towards the edges. The lens has moderate close focussing capablities. It is relatively big and not lightweight.

My lens doesn't focus to infinity. The reason might be the adapters. I did not find my C/Y adapter, so I used a C/Y to Canon adaper and then a Canon to NEX adapter. This might have offset the lens by a mm. If I find my C/Y adapter, I'll do the test again.
