LEITZ ELMAR f=9cm 1 : 4

Focal length: 90mm
Mount: M39
Aperture: F 4 - F 32
Min focus distance: 1.0m
Length (from flange): 78/88mm
[+ 11mm for the adapter]
Diameter: 45mm
Weight: 240 gr.

Some pictures:


jpg_lens/90mm_leitz_IMG_0856.JPG

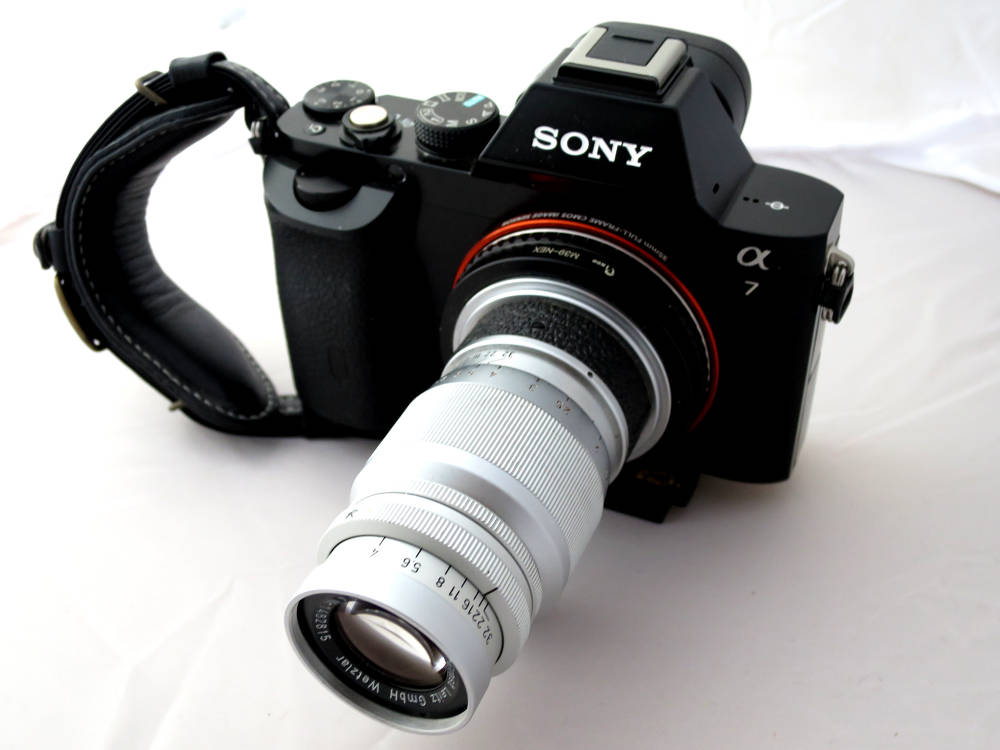

A7 and the lens.

Sample pictures: You may click on the sample image (except closest focus) for full resolution. The full resolution image opens in a new window, so you can keep it open for comparison. Focus is on the satellite dish in the center of the photo.

jpg_sample/w_90mm_leitz_f4_DSC00860.JPG
F 4.

jpg_sample/w_90mm_leitz_f8_DSC00861.JPG
F 8.

jpg_sample/w_90mm_leitz_f22_DSC00862.JPG
F 22.

jpg_sample/w_90mm_leitz_cl_f8_DSC00863.jpg
Closest focus is 100cm from outermost edge of the lens, F 8. Focus on the program wheel of the camera).

This old lens (from 1957) is very small and lightweight for a tele lens. It can be found for moderate prices and it's a sharp lens. Wide open it's sharp already, a tad soft at the edges. Stopped down it's simply sharp. You can use it for portraits with good results. The lens has no close focussing capablities.
