HELIOS-44 M-4 2/58mm

Focal length: 58mm
Mount: M42
Aperture: F 2.0 - F 16
Min focus distance: 0.50m
Length (from flange): 40/49mm
[+ 27mm for the adapter], rear element protrudes 8mm
Diameter: 63mm
Weight: 240gr.

Some pictures:

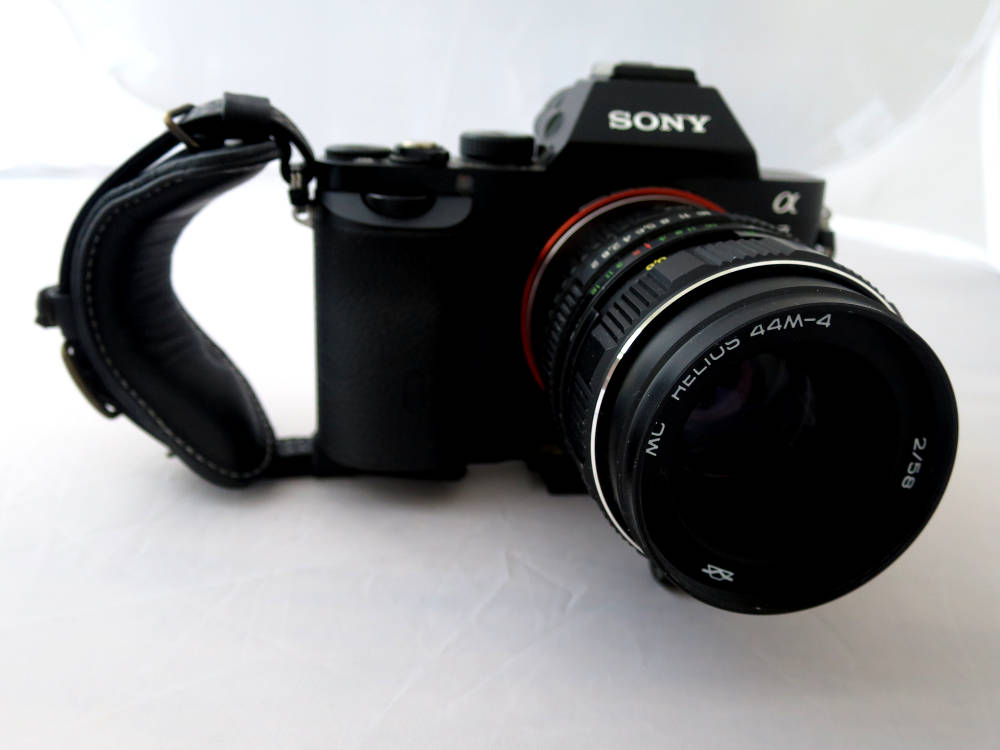

jpg_lens/58mm_helios_44m4_IMG_7868.JPG
A7 and the lens.

Sample pictures: You may click on the sample image (except closest focus) for full resolution. The full resolution image opens in a new window, so you can keep it open for comparison. Focus is on the satellite dish to the right of the big solar panel near the center of the photo.

jpg_sample/w_58mm_helios_44m4_f2_DSC01236.JPG
F 2.

jpg_sample/w_58mm_helios_44m4_f8_DSC01237.JPG
F 8.

jpg_sample/w_58mm_helios_44m4_f16_DSC01238.JPG
F 16.

jpg_sample/w_58mm_helios_44m4_cl_f8_DSC01240.JPG
Closest focus  is 35cm from the outermost edge of the lens, F 8. Focus on the program wheel of the camera.

This lens was sold with Zenit SLR cameras. The prices for the M-4 version are a bit lower, they have a lower resolution as the top classed models M-6 and M-7. The later Helios 44 M series lenses were classed from M with the lowest resolution (38/19 lpmm) to M-7 (50/30 lpmm, a bit hard to find). The M-4 has 41/20 lpmm, it's a very decent lens. I could see no difference in sharpness to the M-6, but judge yourelf. This one is an 6-blade KMZ version from the 1990, with automatic aperture. Wide open it's quite soft towards edges. Stopped down a little bit, it gets immediately sharp. The lens has good close focussing capablities. It is a small Helios 44 variant, but it's still relatively big and heavy. A nice lens which offers one usable stop more than a standard lens.

For the "Bokeh" of the different Helios 44 lenses I have made a separate page.
