ROESCHLEIN TELENAR 1:5.6 f 13,5cm

Focal length: 90mm
Mount: M39 Paxette (see last paragraph)
Aperture: F 3.8 - F 16
Min focus distance: 1.5m
Length (from flange): 43/48mm
[+ 25mm for the adapters]
Diameter: 49mm
Weight: 151gr.

Some pictures:


jpg_lens/90mm_roeschlein_telenar_IMG_7867.JPG

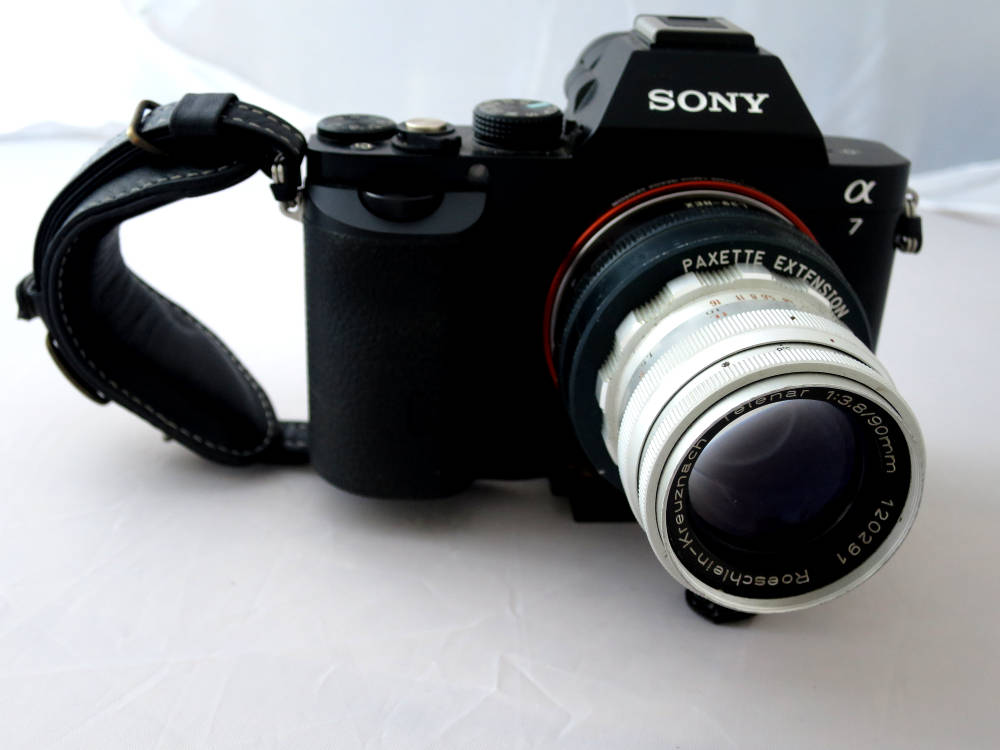

A7 and the lens.

Sample pictures: You may click on the sample image (except closest focus) for full resolution. The full resolution image opens in a new window, so you can keep it open for comparison. Focus is on the satellite dish to the right of the big solar panel near the center of the photo.

jpg_sample/w_90mm_roeschlein_f3_8_DSC01233.JPG
F 3.8.

jpg_sample/w_90mm_roeschlein_f8_DSC01234.JPG
F 8.

jpg_sample/w_90mm_roeschlein_f16_DSC01235.JPG
F 16.

jpg_sample/w_90mm_roeschlein_cl_f8_DSC01241.JPG
Closest focus  is 1.4m from the outermost edge of the lens, F 8. Focus on the program wheel of the camera.

This old lens was sold for Braun Paxette cameras. Wide open it's sharp in the center, but soft towards the edges and there is a hint of vignetting. Stopped down it's fine. It's a nice portrait lens, wide open there is an easy nice bokeh. It has no close focusing capabilities. It's extremely short and lightweight, even if you add the adapters.

The M39 Paxette Mount is the same thread as ordinary M39 (Leica), but  a different flange focal distance.
Please refer to the Paxette lens page.
